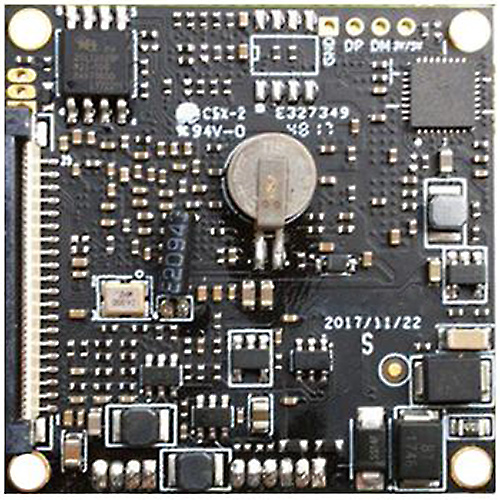

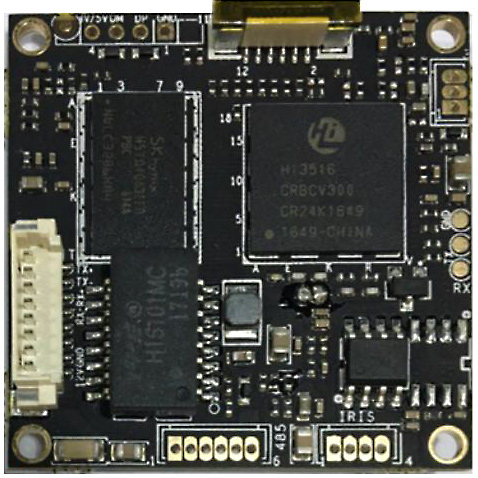

H.265 Hi3516CV300 full function 2MP Sony IMX291 Starlight IP camera board

H.265 Hi3516CV300 full function 2MP Sony IMX291 Starlight IP camera board

SKU: H6C3S291

Sensor:

Video Coding:

Hole Distance:

Resolution:

$40.90

Weight: 0.05 kg

Pixel Size:

Description

Sony IMX291 starlight 2MP sensor.

Hisilicon Hi3516CV300 processor, the latest version of ISP, low power consumption, low illumination, better noise processing, and further optimized color reproduction;

25fps full real-time monitoring, using H.265 video compression technology, low bit rate, high definition image

Full-featured interface: two-way voice, digital input and output alarm, USB wireless WIFI, TF card local storage, RTC time synchronization, hardware reset, etc.

Adopting industry-leading low-power process and internal low-power architecture design, the module continues to lead the industry in low bit rate, high image quality and low power consumption;

Secondary development customization (PCBA structure, SDK development kit, software platform docking)

Specifications



ModelH6C3S291
SystemMain ChipHi3516CV300
SensorSony IMX291
Board TypeFull   function board
DisplayVideo Resolution1920x1080
Effective resolution2MP
Video Coding standardH.265/H.264
Video Frame rate25FPS
Video bitrate128kbps   ~ 8Mbps
VBR   CBR selectable
AudioAudio Input OutputSupport
Audio CodingG.711U
FunctionPrivacy areaSupport   4 privacy area
Exposure ControlAuto
Gain ControlAuto
White BalanceAuto
Day&NightManually   set the switching mode of IR-CUT through software
Video AdjustSupport   contrast, brightness, saturation, sharpness, etc.
Remote operationSystem   settings, Video  stream management,   account management, network management
Motion DetectionSupport
AlarmEmail   Alarm, Client Alarm
Maximum number of remote users32
DC Auto IrisSupport
USB InterfaceExtended   wifi module
ResetHardware   Reset
RTC Time synchronizationSupport
ExpansionAdd expansion boardAdd   switch input/output alarm, TF card local storage and other functions

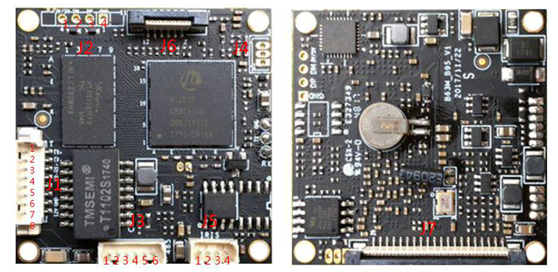

Pin Definition

  • H6C3 3516CV300 Board

    Pin definition


    J1 Ethernet Port

    PinDescription
    1TX+
    2TX-
    3RX+
    4RX-
    5LED-Link
    6LED-ACT
    7GND
    8DC   12V



    J2 USB Port

    PinDescription
    13.3V
    2USB-DM
    3USB-DP
    4GND



    J3 Audio Input, Audio Output, Reset, RS485

    PinDescription
    1Ain
    2AC-OUTL-Rear
    3GND
    4RESET
    5RS485   DP
    6RS485   DN



    J4 CVBS Video Output / 1 ch Alarm Output



    J5 Auto Iris

    PinDescription
    1CONT+
    2CONT-
    3DRIVE
    4GND



    J6 FPC interface for TF Card & Alarm



    J7 To Sensor Board
