| SKU | IP19VS274(-AI -AZ -ET9) |

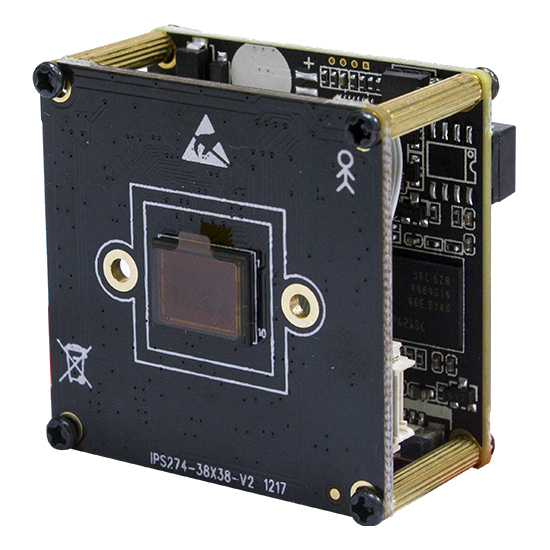

| Camera Type | H.265 4K 8.0mp IP Camera Module Board |
| Camera | |
| Image Sensor | 1/2.5" 8.51M Pixels Color CMOS Image Sensor IMX274 |
| DSP | Hisilicon 3519v101 |
| Effective Pixels | 3840(H) X 2160(V) Approx. 8.51M Pixels |
| Scanning System | Progressive |
| Electronic Shutter Speed | Optional (1/12~1/8000s) |
| Min. Illumination | 0. 001Lux@F1.2 |
| S/N Ratio | ≥50dB(AGC OFF) |
| WDR | Digital WDR> 80db |
| White Balance | Auto |
| Gain Control | Auto |
| Noise Reduction | 3D-DNR |
| Video/Audio | |
| Video Compression | H.264/MJPEG/H.265 |
| Resolution | Main Stream: 8.0mp UHD 4K 3840X2160 (1~30fps), 2592X1944, 2548X1536 |
| Sub Stream:D1, VGA, CIF, (1~25/30fps) | |
| Frame Rate | 1~25/30fps |
| Bit Rate | 32Kbps~16Mbps, support VBR, CBR |
| Text Overlay | Channel, Date & Time, Bit Rate |
| Audio Compression | G.726/G.711A/G.711U |
| Audio Bit Rate | 16000 |
| Sampling Rate | 8K |
| Network | |
| Data Storage | Video Record, Picture Format |
| Trigger | Manual, Automatic(Motion Detection, Alarm, Schedule, Cycle) |
| Alarm Data Transmission | FTP, E-mail, Browser, CMS |
| Protocol | TCP/IP, UDP, RTP, RTSP, RTCP, HTTP, DNS, DDNS, DHCP, FTP, NTP, PPPOE, SMTP, UPNP |
| ONVIF | ONVIF V2.4 and GB28181 |
| Max. User Access | 8 Users, IE, Chrome, Firefox |
| Smart Phone | iPhone, iPad, Android |
| Interface | |
| Audio | 1ch input, 1ch output |
| Ethernet | RJ45 10M/100M/1000Mbps |
| BNC Video out | 1ch |
| RS485 | 1ch |
| USB | 1ch (Support 64G USB flash/WIFI/3G Extended) |
| Alarm | 1ch input |
| Reset | Support |
| Function | |
| Memory Card | Support Max 128GB MicroSD Card (-ET9 Series) |
| Motorized Zoom Lens*(Optional) | Auto Zoom (Optional -AZ Series), Auto Focus, Auto IRIS |
| WIFI*(Optional) | 802.11b/g/n (Support USB MMT7001 module) |
| Auto IRIS | DC Drive Auto IRIS Lens (Optional -AI Series) |
| POE*(Optional) | IEEE802.3af |
| General | |
| Power Supply | DC12V 2A / POE |
| Power Consumption | < 6W |
| Working Environment | -10°C~+60°C, 10%~90% RH |
| Product Size | 38 x 38 x 25mm |
![]() | ![]() |
![]() | ![]() |
This product not include cable by default.
| JP1 Power interface | Preview | Pitch | |
| 1 | DC12V | ![]() | 1.25mm |
| 2 | Video GND | ||
| 3 | CVBS output | ||
| 4 | GND | ||
| JE1 Network interface |
| 1.25mm | |
| 1 | RJ45_1 (TX+) | ||
| 2 | RJ45_2 (TX-) | ||
| 3 | RJ45_3 (RX+) | ||
| 4 | RJ45_6 (RX-) | ||
| 5 | Network connection indicator light (green light) | ||
| 6 | Network status indicator light (yellow light) | ||
| Sensor board J1 IR-cut interface | 1.25mm | ||
| 1 | IR-CUT control signal 5V- | ||
| 2 | IR-CUT control signal 5V+ | ||
| Sensor board J2 DC auto Iris interface (Support automatic aperture model: -AI) | Depend on color definition of Lens | 1.25mm | |
| 1 | drive- | ||
| 2 | damp- | ||
| 3 | drive+ | ||
| 4 | damp+ | ||
| Sensor board J3 Power Auto Zoom lens interface (Support Electric lens model:-AZ) | Depend on color definition of Lens | 1.25mm | |
| 1 | Focus A- | ||
| 2 | Focus A+ | ||
| 3 | Zoom A- | ||
| 4 | Zoom A+ | ||
| 5 | Zoom B+ | ||
| 6 | Zoom B- | ||
| 7 | Focus B- | ||
| 8 | Focus B+ | ||
| Sensor board J4 No definition | |||
| J5 Infrared Light board interface | 1.25mm | ||
| 1 | Infrared Light board12V power output | ||
| 2 | GND | ||
| 3 | LED feedback signal input(0.8V-12V) | ||
| 4 | Infrared Light enable control | ||
| J6 function interface | Support powerless microphone and Line in | 1.25mm | |
| 1 | Audio in | ||
| 2 | Audio GND | ||
| 3 | Audio out | ||
| 4 | GND | ||
| 5 | Reset | ||
| 6 | Alarm in 1, low level effective | ||
| 7 | Alarm in 2 (reserve), low level effective | ||
| 8 | Alarm out control GPO, 3.3V level signal | ||
| 9 | RS_485+ | ||
| 10 | RS_485- | ||
| JU1 USB interface | Support MT7601 /RT5370 USB wifi module. | 1.25mm | |
| 1 | GND | ||
| 2 | USB_DP | ||
| 3 | USB_DM | ||
| 4 | 5V power out | ||
| J7 expandion board | FPC | ||
| 1 | USB_DP | ||
| 2 | USB_DM | ||
| 3 | System | ||
| 4 | SDIO Work Clock | ||
| 5 | SDIO Data3 | ||
| 6 | SDIO Data2 | ||
| 7 | SDIO Data1 | ||
| 8 | SDIO Data 0 | ||
| 9 | System | ||
| 10 | SDIO Order | ||
| 11 | SDIO Power enable control signal | ||
| 12 | SDIO Card detection signal | ||
| 13 | SDIO Pull-up resistor power out | ||
| 14 | Alarm out control GPO | ||
| 15 | System | ||
| 16 | DC5V Power out | ||
